Corner Round Bit
Model Number
WP0805101
WP0805102
WP0805103
WP0805104
WP0805105
WP0805106
WP0805107
WP0805108
WP0805109
WP0805110
WP0805111
WP0805112
WP0805113
WP0805114
WP0805115
WP0805116
WP0805117
WP0805118
WP0805119
WP0805120
WP0805121
WP0805122
WP0805123
WP0805124
WP0805125
WP0805126
WP0805127
WP0805128
WP0805129
WP0805130
WP0805131
WP0805132
WP0805133
WP0805134
WP0805135
Data sheets

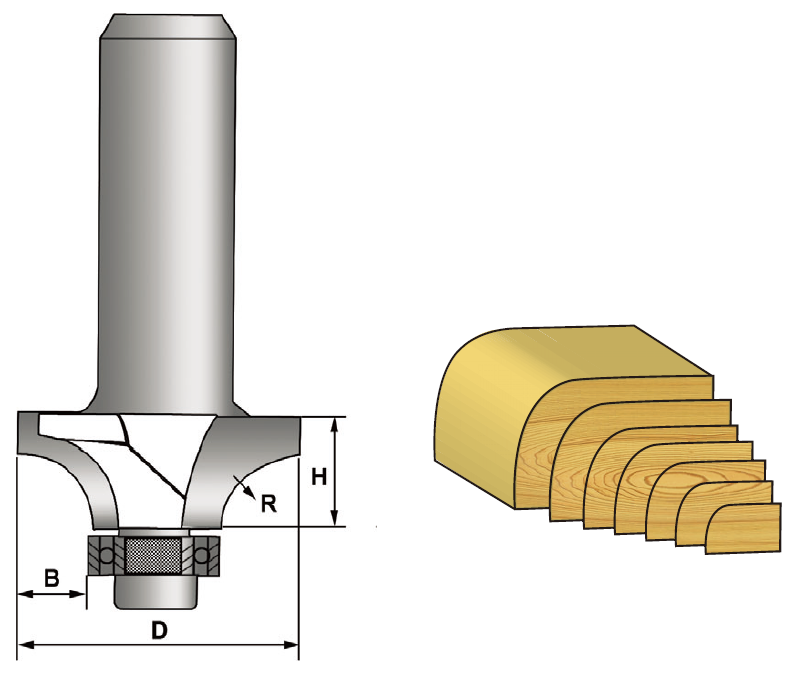

| Part No. | Code | Size(inch) | D (mm) | R (mm) | H(mm) | B(mm) |
| WP0805101 | 1/4x3/16 | 14.26 | 2.38 | 5.4 | 2.38 | |
| WP0805102 | 1/4x1/4 | 15.86 | 3.17 | 6.4 | 3.17 | |
| WP0805103 | 65212 | 1/4x1/4 | 19.05 | 3.17 | 6.4 | 3.17 |
| WP0805104 | 1/4x5/16 | 20.64 | 3.97 | 8 | 3.97 | |
| WP0805105 | 94630 | 1/4x3/8 | 22.22 | 4.76 | 9.5 | 4.76 |
| WP0805106 | 94631 | 1/4x1/2 | 25.4 | 6.35 | 11 | 6.35 |
| WP0805107 | 94632 | 1/4x5/8 | 28.62 | 7.96 | 12.7 | 7.96 |
| WP0805108 | 1/4x3/4 | 31.74 | 9.52 | 16 | 9.52 | |
| WP0805109 | 1/4x7/8 | 34.9 | 11.1 | 17.5 | 11.1 | |
| WP0805110 | 96028 | 1/4x1 | 38.1 | 12.7 | 19 | 12.7 |
| WP0805111 | 1/2x3/16 | 14.26 | 2.38 | 5.4 | 2.38 | |
| WP0805112 | 1/2x1/4 | 15.86 | 3.17 | 6.4 | 3.17 | |
| WP0805113 | 1/2x5/16 | 20.64 | 3.97 | 8 | 3.97 | |
| WP0805114 | 1/2x3/8 | 22.22 | 4.76 | 9.5 | 4.76 | |
| WP0805115 | 1/2x1/2 | 25.4 | 6.35 | 11 | 6.35 | |
| WP0805116 | 1/2x5/8 | 28.62 | 7.96 | 12.7 | 7.96 | |
| WP0805117 | 1/2x3/4 | 31.74 | 9.52 | 16 | 9.52 | |
| WP0805118 | 1/2x7/8 | 34.9 | 11.1 | 17.5 | 11.1 | |
| WP0805119 | 1/2x1 | 38.1 | 12.7 | 19 | 12.7 | |
| WP0805120 | 1/2x1-1/8 | 41.28 | 14.29 | 20.5 | 14.29 | |
| WP0805121 | 65218 | 1/2x1-1/4 | 44.5 | 15.9 | 21.5 | 15.9 |
| WP0805122 | 1/2x1-3/8 | 47.62 | 17.46 | 23 | 17.46 | |
| WP0805123 | 1/2x1-1/2 | 50.8 | 19.05 | 25 | 19.05 | |
| WP0805124 | 1/2x1-5/8 | 53.98 | 20.64 | 26 | 20.64 | |
| WP0805125 | 1/2x1-3/4 | 57.16 | 22.23 | 28 | 22.23 | |
| WP0805126 | 1/2x1-7/8 | 60.32 | 23.81 | 29 | 23.81 | |
| WP0805127 | 1/2x2 | 63.5 | 25.4 | 32 | 25.4 | |
| WP0805128 | 1/2x2-1/8 | 66.66 | 26.98 | 33.4 | 26.98 | |
| WP0805129 | 1/2x2-1/4 | 69.86 | 28.58 | 34.1 | 28.58 | |
| WP0805130 | 1/2x2-3/8 | 73.02 | 30.16 | 36.7 | 30.16 | |
| WP0805131 | 1/2x2-1/2 | 76.2 | 31.75 | 38 | 31.75 | |
| WP0805132 | 1/2x2-5/8 | 79.36 | 33.33 | 39.8 | 33.33 | |
| WP0805133 | 1/2x2-3/4 | 82.56 | 34.93 | 41.5 | 34.93 | |
| WP0805134 | 1/2x2-7/8 | 85.72 | 36.51 | 43.1 | 36.51 | |
| WP0805135 | 1/2x3 | 88.9 | 38.1 | 44 | 38.1 |
