Miter Bit
Model Number
WP0814601
WP0814602
WP0814603
WP0814604
WP0814605
WP0814606
WP0814607
WP0814608
Data sheets

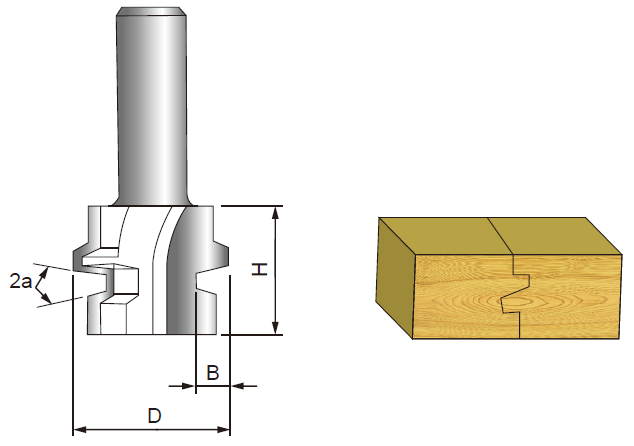

| Pa rt No. | Code | Size(inch) | 2a | H(mm) | D (mm) | B(mm) |
| WP0814601 | 96042 | 1/4×7/32 | 24° | 15 | 30 | 5.55 |
| WP0814602 | 96043 | 1/4×1/4 | 30° | 25.4 | 30.5 | 6.35 |
| WP0814603 | 1/4×5/16 | 30° | 25.4 | 33.66 | 7.93 | |
| WP0814604 | 1/4×3/8 | 30° | 25.4 | 41.3 | 9.52 | |
| WP0814605 | 1/2×7/32 | 24° | 15 | 30 | 5.55 | |
| WP0814606 | 1/2×1/4 | 30° | 25.4 | 30.5 | 6.35 | |
| WP0814607 | 1/2×5/16 | 30° | 25.4 | 33.66 | 7.93 | |
| WP0814608 | 1/2×3/8 | 30° | 25.4 | 41.3 | 9.52 |
