Ogee Bit
Model Number
WP0806701
WP0806702
WP0806703
WP0806704
WP0806705
WP0806706
WP0806707
WP0806708
WP0806709
WP0806710
WP0806711
WP0806712
WP0806713
WP0806714
WP0806715
Data sheets

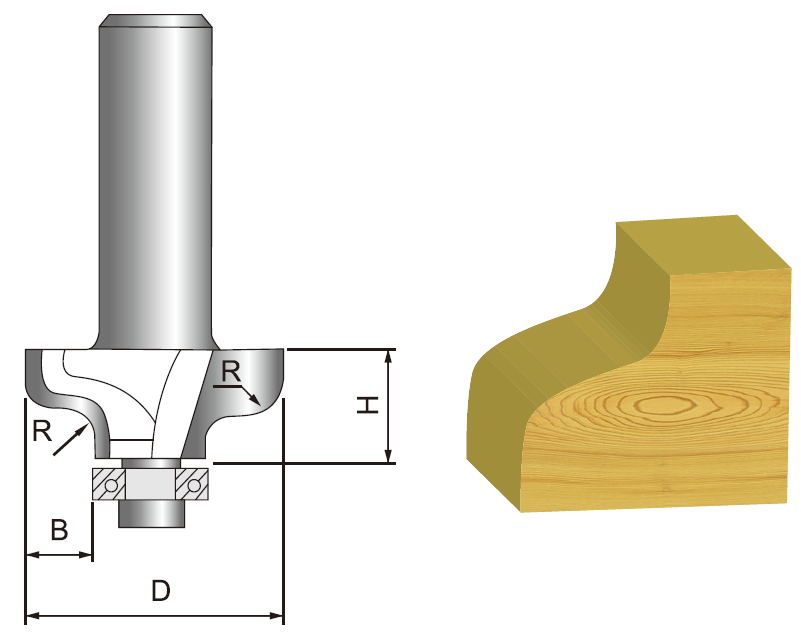

| Part No. | Code | Size(inch) | D (mm) | R (mm) | H(mm) | B(mm) |
| WP0806701 | 96032 | 1/4×1/2 | 25.4 | 3.52 | 13 | 6.35 |
| WP0806702 | 96033 | 1/4×5/8 | 28.6 | 4.59 | 15.1 | 7.95 |
| WP0806703 | 96034 | 1/4×3/4 | 31.7 | 5.74 | 17.3 | 9.5 |
| WP0806704 | 1/4×7/8 | 34.9 | 7 | 19.7 | 11.1 | |
| WP0806705 | 1/4×1 | 38.1 | 8.41 | 22.3 | 12.7 | |
| WP0806706 | 1/2×1/2 | 25.4 | 3.52 | 13 | 6.35 | |
| WP0806707 | 1/2×5/8 | 28.6 | 4.59 | 15.1 | 7.95 | |
| WP0806708 | 1/2×3/4 | 31.7 | 5.74 | 17.3 | 9.5 | |
| WP0806709 | 1/2×7/8 | 34.9 | 7 | 19.7 | 11.1 | |
| WP0806710 | 1/2×1 | 38.1 | 8.41 | 22.3 | 12.7 | |
| WP0806711 | 1/2×1-1/8 | 41.5 | 9.89 | 25 | 14.4 | |
| WP0806712 | 1/2×1-1/4 | 44.5 | 11.59 | 28 | 15.9 | |
| WP0806713 | 1/2×1-1/2 | 50.8 | 14.76 | 33.6 | 19.05 | |
| WP0806714 | 1/2×1-3/4 | 57.1 | 16.37 | 37.03 | 22.2 | |
| WP0806715 | 1/2×2 | 63.7 | 17.98 | 40.43 | 25.5 |
