Dovetail Bit
Model Number
WP0802601
WP0802602
WP0802603
WP0802604
WP0802605
WP0802606
WP0802607
WP0802608
WP0802609
WP0802610
WP0802611
WP0802612
WP0802613
WP0802614
WP0802615
WP0802616
WP0802617
Data sheets

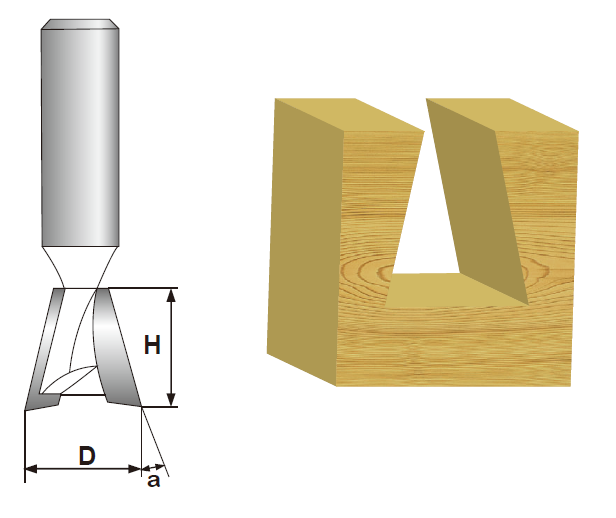

| Part No. | Code | Size(inch) | α | D(mm) H (mm) | |
| WP0802601 | 94595 | 1/4x5/16 | 9° | 7.96 | 9.5 |
| WP0802602 | 62800 | 1/4x3/8 | 8° | 9.52 | 10 |
| WP0802603 | 61545 | 1/4x1/2 | 14° | 12.7 | 13 |
| WP0802604 | 1/4x5/8 | 14° | 15.9 | 16 | |
| WP0802605 | 1/4x3/4 | 14° | 19.05 | 20 | |
| WP0802606 | 1/4x7/8 | 14°30' | 22.2 | 23 | |
| WP0802607 | 1/4x1 | 14°30' | 25.4 | 26 | |
| WP0802608 | 1/2x5/16 | 9° | 7.96 | 9.5 | |
| WP0802609 | 1/2x3/8 | 8° | 9.52 | 10 | |
| WP0802610 | 1/2x1/2 | 14° | 12.7 | 13 | |
| WP0802611 | 1/2x5/8 | 14° | 15.9 | 16 | |
| WP0802612 | 1/2x3/4 | 14° | 19.05 | 20 | |
| WP0802613 | 1/2x7/8 | 14°30' | 22.2 | 23 | |
| WP0802614 | 1/2x1 | 14°30' | 25.4 | 26 | |
| WP0802615 | 1/2x1-1/8 | 14°30' | 28.6 | 29 | |
| WP0802616 | 1/2x1-1/4 | 14°30' | 31.75 | 30 | |
| WP0802617 | 1/2x1-1/2 | 14°30' | 38.1 | 30 | |
