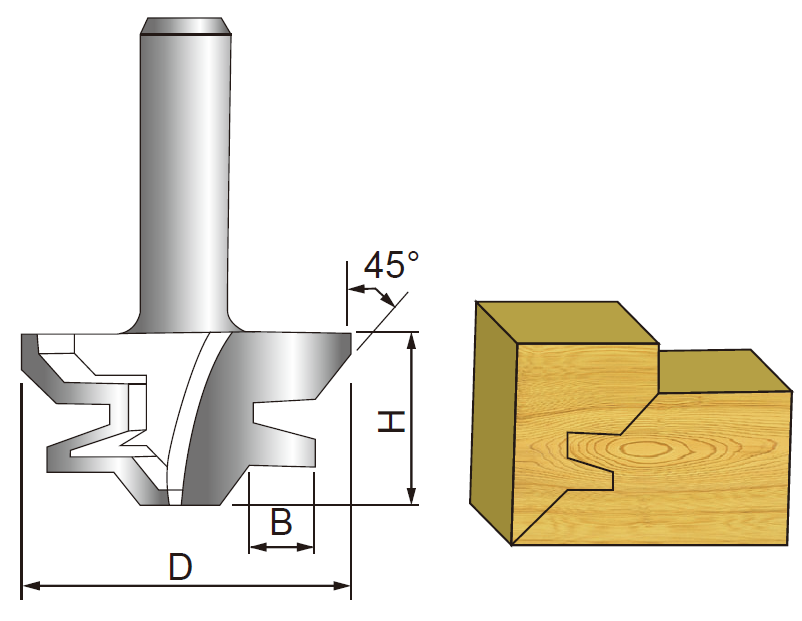

Lock Miter Bit 45°
Model Number
WP0802801
WP0802802
WP0802803
WP0802804
WP0802805
Data sheets
| Part No. | Code | Size(inch) | D (mm) | H(mm) | B(mm) |
| WP0802801 | 96044 | 1/4×1-1/2 | 38.1 | 17.14 | 4.76 |
| WP0802802 | 1/2×1-1/2 | 38.1 | 17.14 | 4.76 | |
| WP0802803 | 96045 | 1/2×1-3/4 | 44.45 | 19.05 | 6.55 |
| WP0802804 | 1/2×2-3/4 | 69.85 | 30.2 | 8 | |
| WP0802805 | 1/2×3 | 76.2 | 25.4 | 6.5 |
