Shorter 1/4" Hex Shank Auger Bit
*Self feeding screw point provides fast boring in hard and soft woods, for precise and easy drilling.
*Solid center design provides extra rigidity and power while boring.
*Grooved hex shank prevents slipping in drill chuck or bit extension.
*Fits all standard 1/4” quick change chucks.
Model Number
3MM
6MM
7.5MM
8MM
8.5MM
9MM
10MM
12MM
15MM
18MM
Data sheets

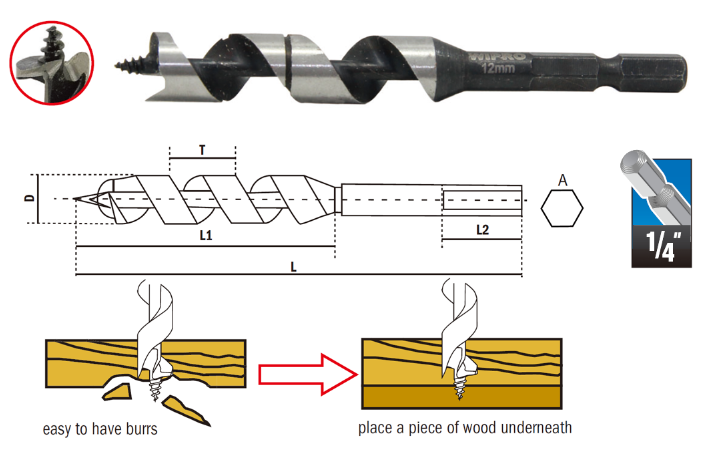

| Size(D) | Code | TYPE | L | L1 | L2 | A |
| 3MM | 78315 | Type 8 | 80.5mm | 35.5mm | 28mm | 6.25mm |
| 6MM | 78316 | Type 8 | 89mm | 35.5mm | 28mm | 6.25mm |
| 7.5MM | 78317 | Type 8 | 90mm | 44mm | 28mm | 6.25mm |
| 8MM | 78318 | Type 8 | 90.8mm | 54mm | 28mm | 6.25mm |
| 8.5MM | 78319 | Type 8 | 100mm | 51mm | 28mm | 6.25mm |
| 9MM | 78320 | Type 8 | 101mm | 54mm | 28mm | 6.25mm |
| 10MM | 78321 | Type 8 | 100mm | 52mm | 28mm | 6.25mm |
| 12MM | 78322 | Type 8 | 100mm | 52mm | 28mm | 6.25mm |
| 15MM | 78323 | Type 8 | 110mm | 51mm | 28mm | 6.25mm |
| 18MM | 78324 | Type 8 | 115mm | 53mm | 28mm | 6.25mm |
