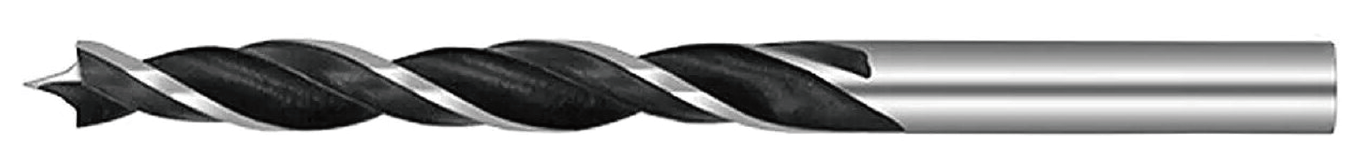

Wood Working Drill Bits
High Quality Material Classic High Carbon Steel Material for fast cutting against tough wood material. High hardness, offer superior cutting power and durable. Prevents drill bit from skipping or walking when without mark,which allows you pinpoint the mark and can penetrate surface quickly. Extra-wide flutes deliver effective and fast chip removal with less effort during drilling. Suitable for soft wood, hard wood, Beech, Walnut, Elm, Nylon, PU, Acrylic
Model Number
3mm
3.5mm
4mm
4.5mm
5mm
5.5mm
6mm
6.5mm
7mm
7.5mm
8mm
8.5mm
9mm
9.5mm
10mm
10.5mm
11mm
11.5mm
12mm
12.5mm
13mm
14mm
15mm
16mm
17mm
18mm
19mm
Data sheets
| Size(Dia.) | Code | Length | Flute Length | Shank(Dia.) |
| 3mm | 23065 | 61mm | 33mm | 3 |
| 3.5mm | 23066 | 70mm | 39mm | 3.5 |
| 4mm | 23067 | 75mm | 43mm | 4 |
| 4.5mm | 23068 | 80mm | 47mm | 4.5 |
| 5mm | 23069 | 85mm | 58mm | 5 |
| 5.5mm | 23070 | 93mm | 57mm | 5.5 |
| 6mm | 23071 | 93mm | 57mm | 6 |
| 6.5mm | 23072 | 101mm | 63mm | 6.5 |
| 7mm | 23073 | 100mm | 69mm | 7 |
| 7.5mm | 23074 | 109mm | 69mm | 7.5 |
| 8mm | 23075 | 117mm | 75mm | 8 |
| 8.5mm | 23076 | 117mm | 75mm | 8.5 |
| 9mm | 23077 | 115mm | 81mm | 9 |
| 9.5mm | 23078 | 125mm | 81mm | 9.5 |
| 10mm | 74959 | 120mm | 87mm | 10 |
| 10.5mm | 64810 | 133mm | 87mm | 10 |
| 11mm | 23081 | 142mm | 94mm | 10 |
| 11.5mm | 64812 | 142mm | 94mm | 10 |
| 12mm | 74960 | 150mm | 100mm | 10 |
| 12.5mm | 23084 | 150mm | 100mm | 10 |
| 13mm | 23085 | 150mm | 100mm | 10 |
| 14mm | 64813 | 150mm | 100mm | 10 |
| 15mm | 64815 | 160mm | 108mm | 10 |
| 16mm | 64816 | 160mm | 108mm | 10 |
| 17mm | 23089 | 180mm | 120mm | 10 |
| 18mm | 23090 | 180mm | 120mm | 10 |
| 19mm | 32526 | 200mm | 130mm | 10 |
