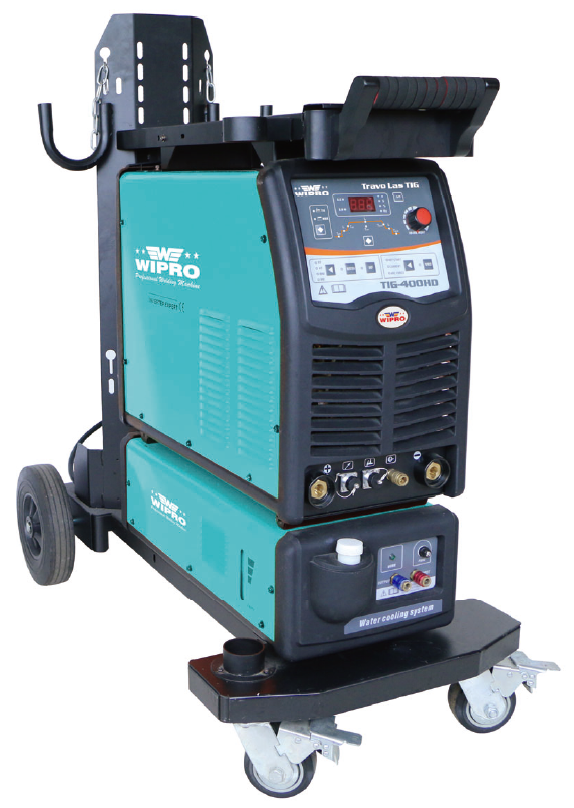

Industrial Welding Machine

Digital welding circuit for refined welding performance
High IP rating for improved reliability in harsh working environment
Reserved digital interface for auto equipment connection
Suitable for carbon steel, stainless steelalloy steel, copper, titanium and titaniumalloy; wide application in shipbuildingpressure vessel, automobile, oilfieldconstruction, chemical construction, steel structure, outdoor decoration,outdoor advertising, etc.

MODEL

TIG-400HD

Code

112860

Input power source

3~AC380V+15% 50/60Hz

Rated input current (A)

25.3

Rated input power capacity (kVA)

17.9

Power factor (cosp)

0.96

No-load voltage (V)

68

Rated output (A/V)

400/36

Rated duty cycle (%) @40°C

50

Welding current (A)

30~400

Arc force range (A)

0~200

Arc start range (A)

0~200

Pre-flow time (S)

0~15

Initial current (A)

5~400

Pilot arc current (A)

5~400

Up/down-slope time(S)

0~10

Peak current (A)

5~400

Post-flow time (S)

0~15

Efficiency (%)

85

Protection class

IP21S

Insulation class

F

Dimensions(mm)

760x360x585

Weight (Kg)

32
