Long Arm Hex Key S.A.E
ANSI/ASME B 18.3 2001
Model Number
HW200191L
HW200192L
HW200193L
HW200194L
HW200195L
HW200196L
HW200197L
HW200198L
HW200199L
HW200200L
HW200201L
HW200202L
HW200203L
HW200204L
HW200205L
HW200206L
HW200207L
HW200208L
HW200209L
HW200210L
HW200211L
HW200212L
Data sheets

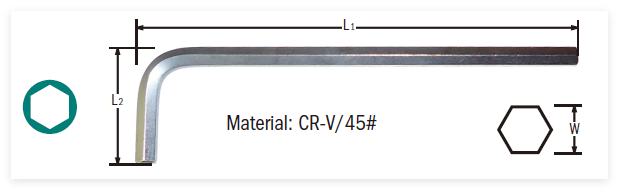

| Item NO. | Code | W(mm) | L1(mm) | L2(mm) |
| HW200191L | 0 | 1/20'' | 74.6 | 15.8 |
| HW200192L | 75879 | 1/16'' | 78.5 | 16.6 |
| HW200193L | 0 | 5/64'' | 83.3 | 17.8 |
| HW200194L | 0 | 3/32'' | 88.1 | 19 |
| HW200195L | 0 | 7/64'' | 92.8 | 20.2 |
| HW200196L | 73860 | 1/8'' | 97.6 | 21.4 |
| HW200197L | 0 | 9/64'' | 102.3 | 22.6 |
| HW200198L | 73865 | 5/32'' | 107.1 | 23.8 |
| HW200199L | 73861 | 3/16'' | 116.6 | 26.1 |
| HW200200L | 75880 | 7/32'' | 126.2 | 28.5 |
| HW200201L | 73859 | 1/4'' | 135.7 | 30.9 |
| HW200202L | 0 | 5/16'' | 154.7 | 34.1 |
| HW200203L | 73863 | 3/8'' | 173.8 | 37.3 |
| HW200204L | 0 | 7/16'' | 192.8 | 40.4 |
| HW200205L | 75881 | 1/2'' | 211.9 | 43.6 |
| HW200206L | 0 | 9/16'' | 230.9 | 46.8 |
| HW200207L | 0 | 5/8'' | 250 | 50 |
| HW200208L | 0 | 3/4'' | 288.1 | 56 |
| HW200209L | 0 | 7/8'' | 350 | 87 |
| HW200210L | 0 | 1'' | 391 | 96 |
| HW200211L | 0 | 1-1/8'' | 394 | 99 |
| HW200212L | 0 | 1-1/4'' | 442 | 115 |
