HSS Straight Shank Twist Drill
Point angle α=118° or 135° DIN338 Finish:Bright\ Coffee\ Rainbow\Tin Coated Material: HSS 4341
Model Number
0.5mm
0.7mm
0.8mm
0.9mm
1.2mm
1mm
1.5mm
2mm
2.5mm
3mm
3.5mm
4mm
4.5mm
5mm
5.5mm
6mm
6.5mm
7mm
7.5mm
8mm
8.5mm
9mm
9.5mm
10mm
10.5mm
11mm
11.5mm
12mm
12.5mm
13mm
14mm
14.5mm
15mm
15.5mm
16mm
Data sheets

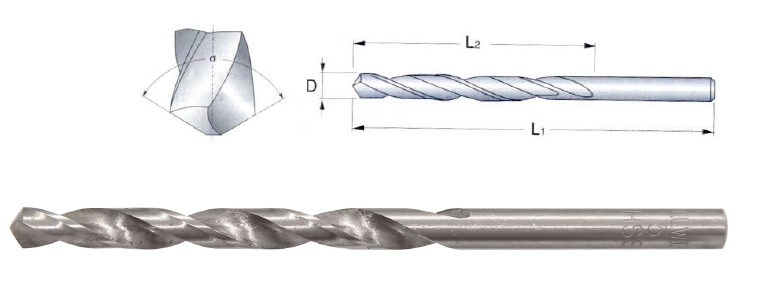

| Dia. D (mm) | Code | Flute Length L2(mm) | Overall Length L1(mm) |
| 0.5mm | 69842 | 6 | 22 |
| 0.7mm | 69844 | 9 | 28 |
| 0.8mm | 69845 | 10 | 30 |
| 0.9mm | 69846 | 11 | 32 |
| 1.2mm | 69847 | 16 | 38 |
| 1mm | 68770 | 12 | 34 |
| 1.5mm | 68771 | 18 | 40 |
| 2mm | 68772 | 24 | 49 |
| 2.5mm | 68773 | 30 | 57 |
| 3mm | 68774 | 33 | 61 |
| 3.5mm | 68776 | 39 | 70 |
| 4mm | 68777 | 43 | 75 |
| 4.5mm | 68778 | 47 | 80 |
| 5mm | 68780 | 52 | 86 |
| 5.5mm | 68781 | 57 | 93 |
| 6mm | 68782 | 57 | 93 |
| 6.5mm | 68783 | 63 | 101 |
| 7mm | 68784 | 69 | 109 |
| 7.5mm | 68785 | 69 | 109 |
| 8mm | 68786 | 75 | 117 |
| 8.5mm | 68787 | 75 | 117 |
| 9mm | 68788 | 81 | 125 |
| 9.5mm | 68789 | 81 | 125 |
| 10mm | 68791 | 87 | 133 |
| 10.5mm | 68792 | 87 | 133 |
| 11mm | 68793 | 94 | 142 |
| 11.5mm | 68794 | 94 | 142 |
| 12mm | 68795 | 101 | 151 |
| 12.5mm | 68796 | 101 | 151 |
| 13mm | 68797 | 101 | 151 |
| 14mm | 68799 | 108 | 160 |
| 14.5mm | 68800 | 114 | 169 |
| 15mm | 68801 | 114 | 169 |
| 15.5mm | 68802 | 120 | 178 |
| 16mm | 68803 | 120 | 178 |
