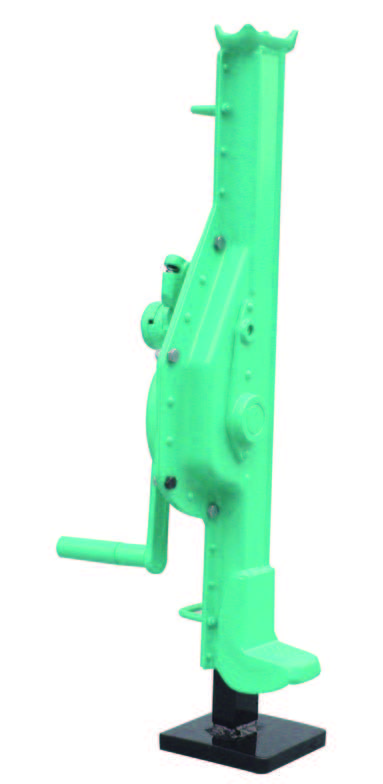

Hand Operated Jack
Model Number
JQA-1.5
JQA-3
JQA-5
JQA-10
JQA-16
JQA-20
Data sheets
| Model | JQA-1.5 | JQA-3 | JQA-5 | JQA-10 | JQA-16 | JQA-20 |
| Code | 77211 | 77212 | 77213 | 77214 | 77215 | 77216 |
| Rated capacity(T) | 1.5T | 3T | 5T | 10T | 16T | 20T |
| Test load(kN) | 18.4 | 36.8 | 61.3 | 122.5 | 196 | 245 |
| Lifting height(mm) | 350 | 350 | 300 | 300 | 300 | 400 |
| Min.start Over-bracket(mm) | 725 | 725 | 725 | 800 | 800 | 950 |
| Jacking height Under-bracket(mm) | 70 | 75 | 75 | 85 | 95 | 110 |
| Lifting height for the handle turn a ring(mm) | 15 | 8.5 | 4.3 | 5 | 3.5 | 2.5 |
| The handle pull to lift full load(N) | 280 | 310 | 350 | 680 | 680 | 700 |
| The number of operator | 1 | 1 | 1 | 2 | 2 | 2 |
| The handle turning radius R(mm) | 250 | 250 | 250 | 300 | 300 | 300 |

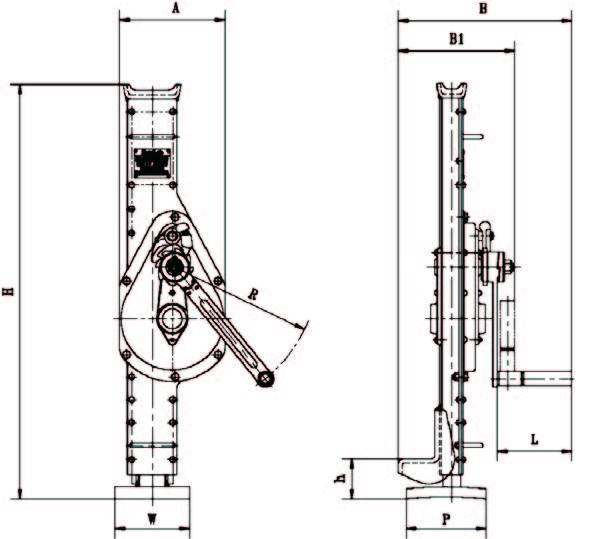

| A(mm) | 125 | 185 | 192 | 242 | 285 | 376 |
| B(mm) | 293 | 304 | 330 | 485 | 492 | 505 |
| B1(mm) | 193 | 204 | 232 | 254 | 282 | 295 |
| H(mm) | 722 | 724 | 724 | 796 | 798 | 948 |
| h(mm) | 68 | 72 | 74 | 82 | 93 | 108 |
| L(mm) | 130 | 130 | 130 | 250 | 250 | 250 |
| W(mm) | 130 | 130 | 150 | 150 | 160 | 200 |
| P(mm) | 140 | 140 | 170 | 170 | 190 | 230 |
