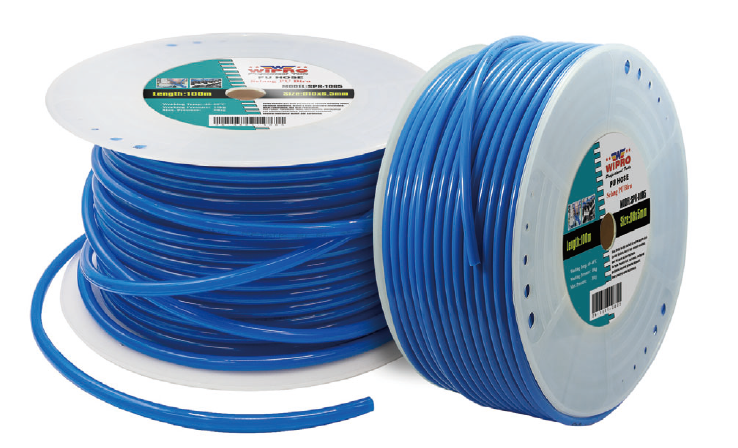

PU Hose
Using flexible has high elasticity to restore memory effect. Excellent flexibility, Water & high-pressure resistance,wear resistance, and tear resistance. Use range: Pneumatic tools, Instruments, mechanical gas pipeline,Laboratory automation equipment, General industrial water, and gardening.
Model Number
SPR-0425
SPR-0604
SPR-0805
SPR-0806
SPR-1065
SPR-1208
SPR-1410
SPR-1612
Data sheets
| Model | Code | Size | Working Pressure | Burst pressure | Working Temp. | Inner Dia. | Outer Dia. | Single Weight | Q’ty/Box | Q’ty/Ctn | Meas. |
| SPR-0425 | 114507 | 4x2.5mmx200m | 10Kg/cm2 | 30Kg/cm2 | -40°~60°C | 2.5mm | 4mm | 2.6kgs | 1 roll | 8 rolls | 63x32x33cm |
| SPR-0604 | 114508 | 6x4mmx200m | 10Kg/cm2 | 30Kg/cm2 | -40°~60°C | 4mm | 6mm | 4.6kgs | 1 roll | 4 rolls | 63x32x32cm |
| SPR-0805 | 114509 | 8x5mm x 100m | 10Kg/cm2 | 30Kg/cm2 | -40°~60°C | 5mm | 8mm | 4.4kgs | 1 roll | 6 rolls | 63x32x41.5cm |
| SPR-0806 | 114510 | 8x6mm x 100m | 6Kg/cm2 | 20Kg/cm2 | -40°~60°C | 6mm | 8mm | 3.3 kgs | 1 roll | 6 rolls | 63x32x41.5cm |
| SPR-1065 | 114511 | 10x6.5mmx100m | 10Kg/cm2 | 30Kg/cm2 | -40°~60°C | 6.5mm | 10mm | 6.3kgs | 1 roll | 4 rolls | 63x32x41cm |
| SPR-1208 | 114512 | 12x8mm x 100m | 10Kg/cm2 | 30Kg/cm2 | -40°~60°C | 8mm | 12mm | 8.3kgs | 1 roll | 2 rolls | 63x32x29.5cm |
| SPR-1410 | 114513 | 14x10mmx100m | 8Kg/cm2 | 24Kg/cm2 | -40°~60°C | 10mm | 14mm | 9.8kgs | 1 roll | 2 rolls | 53x53x32cm |
| SPR-1612 | 114514 | 16x12mmx100m | 8Kg/cm2 | 24Kg/cm2 | -40°~60°C | 12mm | 16mm | 11kgs | 1 roll | 2 rolls | 59x59x36cm |
