A welding regulator is a tiny device that does a big job of regulating the pressure inside the liquid cylinders. It ensures a positive flow of gases while the welding process goes on.
These regulators help to adjust the gas based on the metal that needs to be welded.
Regulators come in different forms, based on performance, size, the inlet pressure needed, and even based on the type of gas used.
Double pressure gauge design for easy reading of cylinder pressure and working pressure data.
The matrix is forged with high quality brass

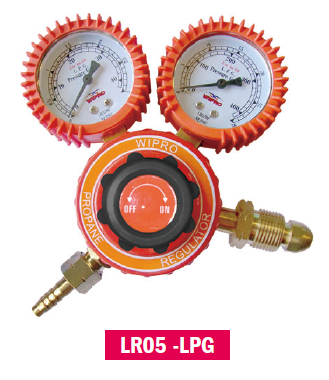

Model Number
Model | LR03 -LPG | LR05-LPG | |||||||||||||||||||||||||||||||||||
Code | 69180 | 69187 | |||||||||||||||||||||||||||||||||||
Gas | LPG | LPG | |||||||||||||||||||||||||||||||||||
Input Pressure | 20kg/cm2 | 20kg/cm2 | |||||||||||||||||||||||||||||||||||
Output Pressure | 0.01-1.5kg/cm2 | 0.01-1.5kg/cm2 | |||||||||||||||||||||||||||||||||||
Gauge Pressure Range-Input | 30kg/cm2 | 30kg/cm2 | |||||||||||||||||||||||||||||||||||
Gauge Pressure Range-Output | 3kg/cm2 | 3kg/cm2 | |||||||||||||||||||||||||||||||||||
Inlet Connector | G5/8"-14-L | G5/8"-14-L | |||||||||||||||||||||||||||||||||||
Outlet Connector | G3/8"-L | G3/8"-L | |||||||||||||||||||||||||||||||||||
Weight | 789g | 865g | |||||||||||||||||||||||||||||||||||
Q’ty/Ctn | 12pcs | 12pcs | |||||||||||||||||||||||||||||||||||
Meas. | 51x39x28cm | 47x40x23cm |
