Air Compressor
Model Number
GEMINI-75

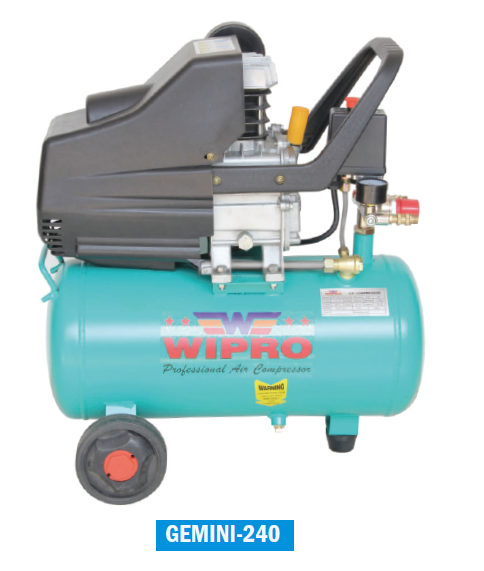

GEMINI-240
GEMINI-300
GEMINI-500
Data sheets
| Model | Code | Power | Voltage V | Cylinder mm |
Rated Speed r/min |
Displacement L/min |
Discharge Pressure | Tank Capacity L |
Net Weight Kgs |
Size L×B×H (cm) |
||
| KW | HP | Psi | Bar | |||||||||
| GEMINI-75 | 93067 | 0.6 | 0.75 | 220 | Φ42×1 | 2800 | 120 | 116 | 8 | 10 | 14.8 | 47×21×47 |
| GEMINI-240 | 92995 | 0.75 | 1 | 220 | Φ42×1 | 2800 | 147 | 116 | 8 | 24 | 23 | 57×27×60.5 |
| GEMINI-300 | 114930 | 1.1 | 1.5 | 220 | Φ47×1 | 2800 | 185 | 116 | 8 | 24 | 20.5 | 57×27×60.5 |
| GEMINI-500 | 92996 | 1.5 | 2 | 220 | Φ48×1 | 2800 | 206 | 116 | 8 | 50 | 30 | 67×31×66 |
