Circle Saw Blade TCT
Model Number
AKB-0724
AKB-0824
AKB-0924
AKB-1024
AKB-1224
AKB-1436
AKB-1636
AKB-2044
AKB-2444
Data sheets
| Model | Size | Code | Bore(mm) | Speed | Material | kerf | Weight | Q’ty/Ctn |
| AKB-0724 | 7"x24T (Rip Blade) | 95959 | 25.4/20 | 9500rpm | 65Mn | 2.4mm | 340g | 50pcs |
| AKB-0824 | 8"x24T (Rip Blade) | 95960 | 25.4/20 | 8500rpm | 65Mn | 2.4mm | 420g | 50pcs |

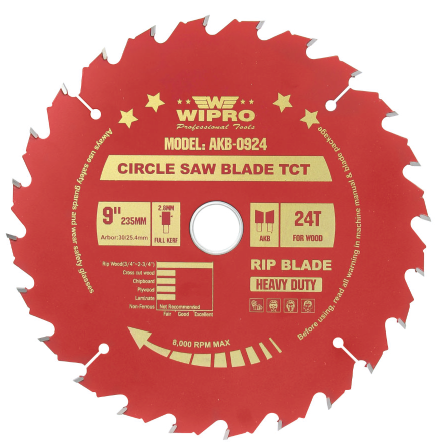

| AKB-0924 | 9"x24T (Rip Blade) | 95965 | 30/25.4 | 8000rpm | 65Mn | 2.8mm | 640g | 25pcs |
| AKB-1024 | 10"x24T (Rip Blade) | 95961 | 30/25.4 | 7500rpm | 65Mn | 3mm | 840g | 25pcs |
| AKB-1224 | 12"x24T (Rip Blade) | 95962 | 30/25.4 | 6500rpm | 65Mn | 3.2mm | 1360g | 10pcs |
| AKB-1436 | 14"x36T (Rip Blade) | 95963 | 30/25.4 | 5500rpm | 65Mn | 3.4mm | 1900g | 10pcs |
| AKB-1636 | 16"x36T (Rip Blade) | 95964 | 30/25.4 | 4500rpm | 65Mn | 3.6mm | 2950g | 5pcs |
| AKB-2044 | 20"x44T (Rip Blade) | 95967 | 30/25.4 | 2500rpm | 65Mn | 4 mm | ||
| AKB-2444 | 24"x44T (Rip Blade) | 95968 | 30/25.4 | 1200rpm | 65Mn | 4.4mm | 7900g | 5pcs |
