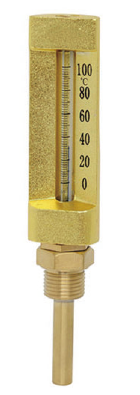

Angular board type thermometer
Stem diameter: normal 6.3mm or according to customers order.
Stem:63~100mm brass angular type.
Inlet thread: 1/2" npt.
Accuracy: 1.6%
Model Number
TSH-410
TSH-410
TSH-415
TSH-415
Data sheets
| Model | Code | Size | Length | |||||||||||||||||||||||||
| TSH-410 | 92246 | Φ10mmX63mm 120℃ | 110mm | |||||||||||||||||||||||||
| TSH-410 | 92247 | Φ10mmX63mm 200℃ | 110mm | |||||||||||||||||||||||||
| TSH-415 | 92248 | Φ10mmX63mm 120℃ | 150mm | |||||||||||||||||||||||||
| TSH-415 | 92249 | Φ10mmX63mm 200℃ | 150mm | |||||||||||||||||||||||||
