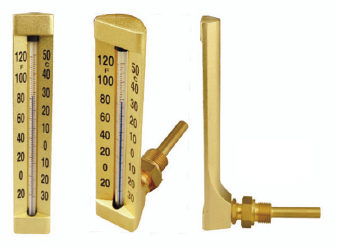

Angular board type thermometer
Stem diameter: normal 6.3mm or according to customers order.
Stem:63~100mm brass angular type.
Inlet thread: 1/2" npt.
Lens: v shaped aluminum, blue reading kerosene filled tube.
Accuracy: 1.6%
Model Number
TSV-410
TSV-410
TSV-415
TSV-415
Data sheets
| Model | Code | Size | Length | ||||||||||||||||||||||||||
| TSV-410 | 92250 | Φ10mmX63mm 120℃ | 110mm | ||||||||||||||||||||||||||
| TSV-410 | 92251 | Φ10mmX63mm 200℃ | 110mm | ||||||||||||||||||||||||||
| TSV-415 | 92252 | Φ10mmX63mm 120℃ | 150mm | ||||||||||||||||||||||||||
| TSV-415 | 92253 | Φ10mmX63mm 200℃ | 150mm | ||||||||||||||||||||||||||
