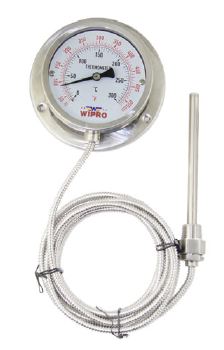

Pressure thermometer
Case: stainless steel
Inlet thread: 1/2" NPT
Temperature probe size:ø10 x(100~150)mm
Max pressure: brass material 1.6mpa, stainless steel material 6.3mpa
Capillary length:≦20m
Ambient temperature:-40~+70℃
Accuracy:1.6%
Model Number
Φ4"x150mmX3m 120°C
Φ4"x150mmX3m 300°C
Φ4"x150mmX3m500°C
Data sheets
| Size | Code | Inlet thread | |||||||||||||||||||||
| Φ4"x150mmX3m 120°C | 92243 | 1/2"-NPT | |||||||||||||||||||||
| Φ4"x150mmX3m 300°C | 92244 | 1/2"-NPT | |||||||||||||||||||||
| Φ4"x150mmX3m500°C | 92245 | 1/2"-NPT | |||||||||||||||||||||
