PU Fitting

Features
The main body is the steerable structure, so it enhances the efficiency of laying the pipe.
The specification is different owing to the difference of thread and pipe diameter connected.
There is hex wrench hole inside the PC thread, so it is easily installed even in a narrow place.
There is O-ring or sealant at the thread, so it could be installed directly without sealing treatment.
Specifications
Working Fluid: Air(No other gases or liquids) Working Pressure:0~150PSI(0~10kgf/cm2)
Negative Pressure:-29.5in Hg (-750mmHg) Temperature range:32~140°F (-10~60°C)
Material: PBT+Cu

Model Number

SPB-04-M5

SPB-04-01

SPB-04-02

SPB-04-03

SPB-06-M5

SPB-06-01

SPB-06-02

SPB-06-03

SPB-06-04

SPB-08-01

SPB-08-02

SPB-08-03

SPB-08-04

SPB-10-01

SPB-10-02

SPB-10-03

SPB-10-04

SPB-12-01

SPB-12-02

SPB-12-03

SPB-12-04

SPB-14~03

SPB-14~04

Price Check

Data sheets

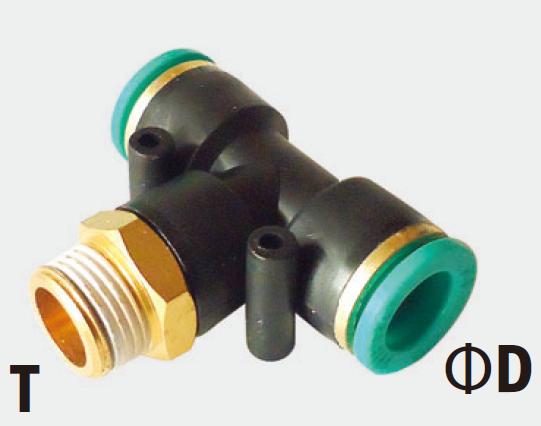

Model	Code	ΦD	T	Q‘ty/Bag
SPB-04-M5	76188	4mm	M5x0.8mm	10
SPB-04-01	76189	4mm	R1/8"-28TPI	10
SPB-04-02		4mm	R1/4"-19TPI	10
SPB-04-03	76191	4mm	R3/8"-19TPI	10
SPB-06-M5		6mm	M5x0.8mm	10
SPB-06-01	76193	6mm	R1/8"-28TPI	10
SPB-06-02	76194	6mm	R1/4"-19TPI	10
SPB-06-03	76195	6mm	R3/8"-19TPI	10
SPB-06-04	76196	6mm	R1/2"-14TPI	10
SPB-08-01	76197	8mm	R1/8"-28TPI	10
SPB-08-02	76198	8mm	R1/4"-19TPI	10
SPB-08-03	76199	8mm	R3/8"-19TPI	10
SPB-08-04	76200	8mm	R1/2"-14TPI	10
SPB-10-01	76201	10mm	R1/8"-28TPI	10
SPB-10-02	76202	10mm	R1/4"-19TPI	10
SPB-10-03	76203	10mm	R3/8"-19TPI	10
SPB-10-04	76206	10mm	R1/2"-14TPI	10
SPB-12-01	76207	12mm	R1/8"-28TPI	10
SPB-12-02		12mm	R1/4"-19TPI	10
SPB-12-03	76209	12mm	R3/8"-19TPI	10
SPB-12-04	76210	12mm	R1/2"-14TPI	10
SPB-14~03	114817	14mm	R3/8"-19TPI	10
SPB-14~04	114818	14mm	R1/2"-14TPI	10
