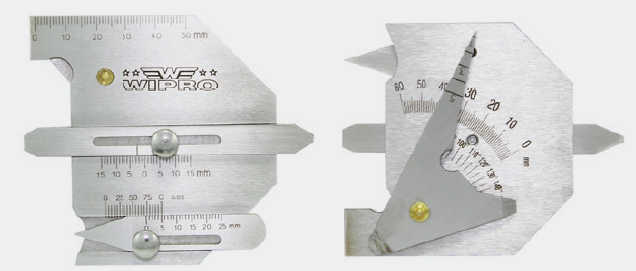

Welding Gauge
MODEL:QY003 CODE:91078
| Inspect item | Range | Tolerance | ||||||||||||||||||||||||||||||||||
| Plane Height | 0-15 | 0.2 | ||||||||||||||||||||||||||||||||||
| Angle welding height | 0-15 | 0.2 | ||||||||||||||||||||||||||||||||||
| Angle welding thickness | 0-15 | 0.2 | ||||||||||||||||||||||||||||||||||
| Width | 0-60 | 0.3 | ||||||||||||||||||||||||||||||||||
| Welding bite depth | 0-5 | 0.1 | ||||||||||||||||||||||||||||||||||
| Welding groove angle | 80°-150° | 30 | ||||||||||||||||||||||||||||||||||
| Gapsize | 0.5-6 | 0.1 | ||||||||||||||||||||||||||||||||||
