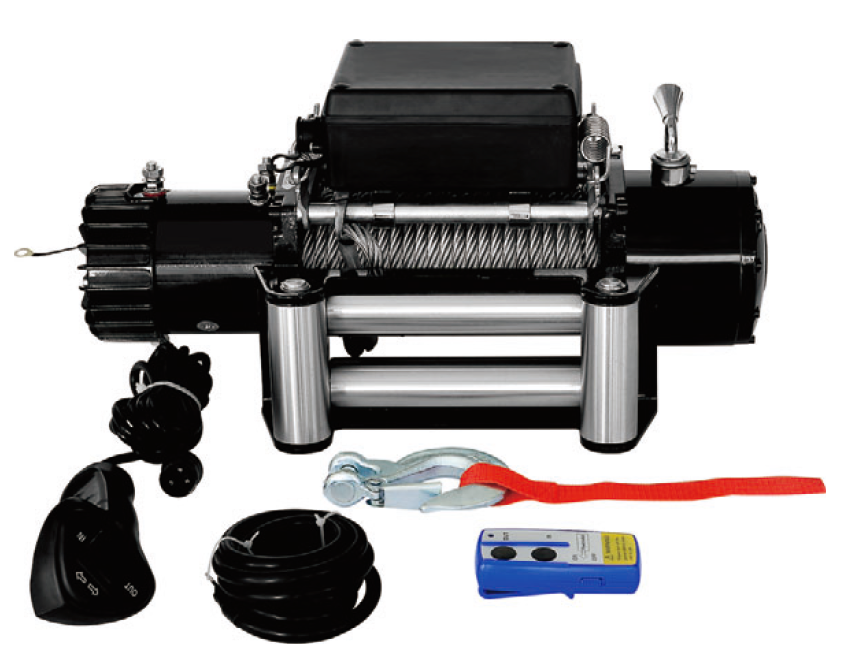

Electric Winch
Model: WM12000
Code: 92717
Rated Line Pull: 12000lbs(5440kgs)
Motor data: 12V DC 4.5KW/5.0HP,24V DC 5.0KW/5.5HP Series Wound
Gear reduction ratio: 265:1
Cable(Dia.xL): 92ft of 0.36”diameter(28m of 9.2mm diameter)
Battery Recommended: 650CCA minimum for winching
Drum size(Dia.xL): Φ2.52”X8.82”(Φ64MMX224MM)
Overall dimensions: (LxWxH) 530x160x218mm
Mounting bolt pattern: 10”X4.5”(254MMX114MM)
12000LBS Line Speed and Amp Draw (First Layer)
| Line Pull |
Lbs |
NO |
2000 |
4000 |
6000 |
8000 |
10000 |
12000 |
| Kgs |
LADE |
907 |
1814 |
2722 |
3629 |
4532 |
5440 |
| Line Speed |
ft/min |
21.3 |
11.5 |
9.4 |
7.9 |
6.5 |
5.8 |
4.4 |
| m/min |
6.5 |
3.5 |
2.85 |
2.4 |
2 |
1.75 |
1.35 |
| Motor Current amps |
12V DC |
70 |
120 |
180 |
220 |
260 |
320 |
350 |
| 24V DC |
40 |
80 |
125 |
160 |
180 |
200 |
220 |
12000LBS Line Pull and Cable Capacity
| Layer of cable |
|
1 |
2 |
3 |
4 |
| Rated line |
Lbs |
12000 |
9210 |
8030 |
6894 |
| Pull per layer |
Kgs |
5440 |
4170 |
3640 |
3125 |
| 94 Cumulative |
Lbs |
13 |
30 |
53 |
72 |
| Cable capacity |
Kgs |
5 |
12 |
21 |
28 |
